Import table

Import Excel spreadsheet,Excel file,Text file into AutoCAD

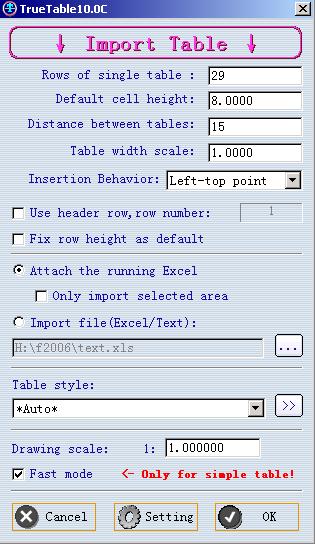

  • [Menu] Select menu "TrueTable",click "Import"
    [Command] Enter command: tt -> i
  • Select "Attaching the running Excel"
  • Click "OK"
  • Specify the insert point of table
TIP
  • Divide table into pieces if table too is long
    Specify "Rows of single table",if rows of table are greater than the number,TrueTable will create a new table
  • Use table header
    Select "Use header",specify "row number",then the first n rows in Excel will be regarded as table header.
    When table is too long ,table header is very useful.
  • Import Excel file or Text file into AutoCAD
    Select "Import file(Excel/Text)",click button "..." to specify files name.
    May specify multi-files at one time
  • Improve speed of import table
    • Use "Fast mode"
      Select "Fast mode",then the speed may improve several dozens times,but only for simple table ,e.g.:
      no merged cell,script etc.

    • Remove unnecessary format
      Click "Setting",select tab "table",remove unnecessary format,e.g.:
      Auto wrap,Script,Rotation
